Coil32 for Android

The version of the Coil32 software, designed to work on mobile devices - smartphones and tablets running on the operating system Android. It works in versions of Android 4.0.4 and higher. Implemented calculation of the four types of coils:

• one-layer air core coil with the winding pitch
• one-layer air core coil that winding by a wire with the rectangular cross-section
• multilayer air core coil
• multilayer air core coil with insulating inter-layers
• multilayer coil that winding on a rectangular former

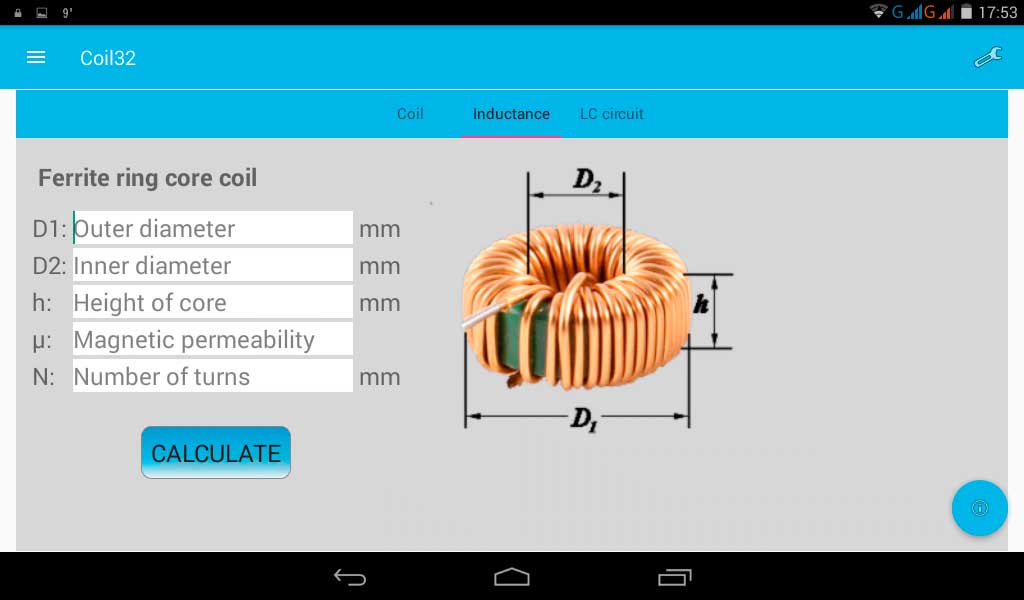

• coil on a ferrite ring
• PCB coil with square layout
• PCB coil in the meander form
• Flat spiral Tesla coil (suitable for spider-web coil)
• Find the unknown permeability of the ferrite toroid
• Coil on a ferrite rod
• The search coil for a metal detector
• A one turn loop inductance coil
• LC resonance circuit calculation

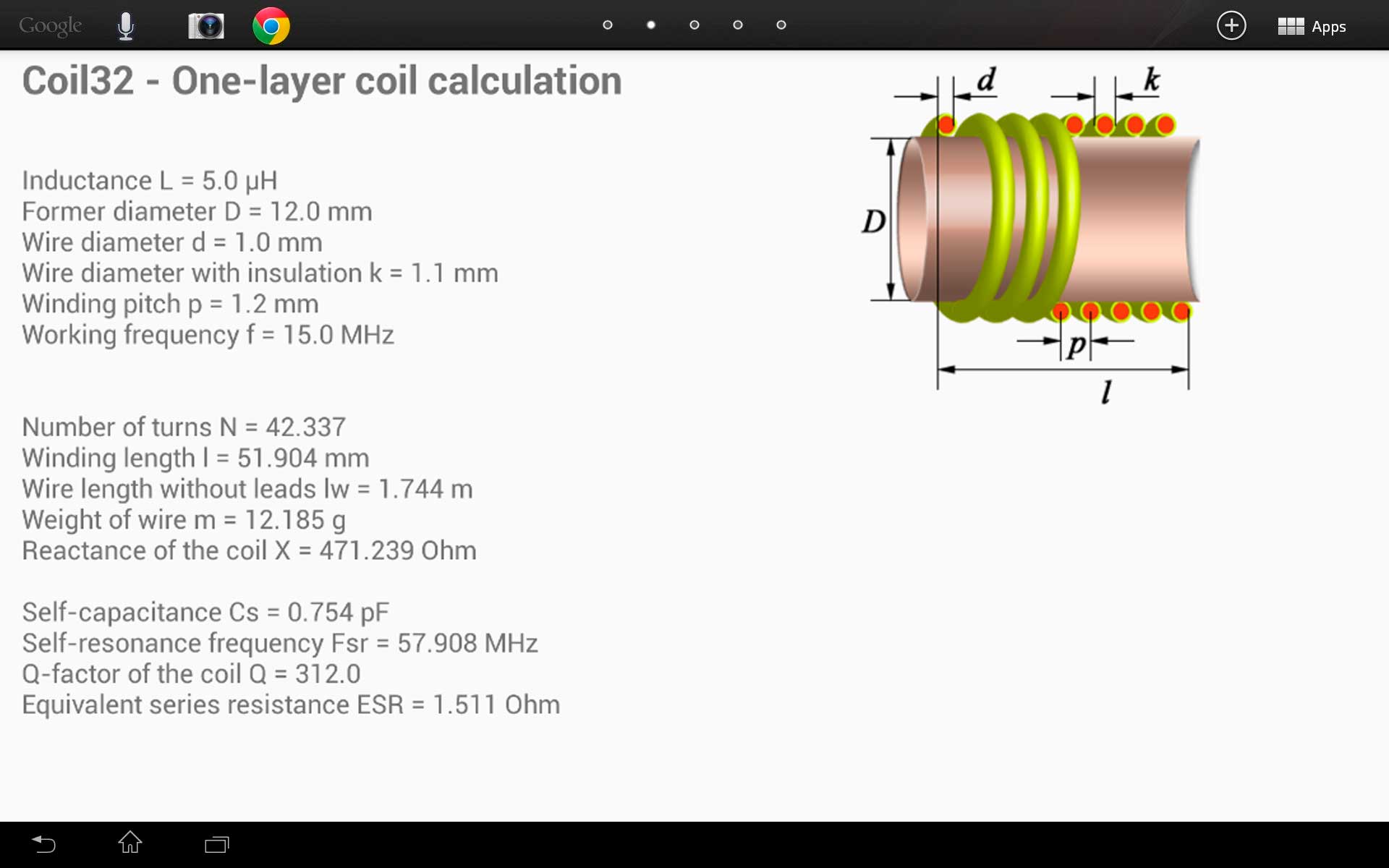

The functionality of all calculations is identical to the Coil64 version of the program. Possible differences in the results are due to the features of the Java-platform, which is the basis of Android-applications. In the calculation of an air core, the single-layer coil is now calculated all the parameters as in Windows-version of the software, including the quality factor and self-capacitance of the coil. If you need to calculate the close-winding single-layer coil, you need to set a winding pitch the same as the diameter of the wire with insulation.
The Android application is multilingual. Now available:

If you can help to add your native language in the application, please email me.

Added ability to select units including inches. The formulas and numerical calculation methods used by the program are described in detail in the help section of the site. The program requires permission to access the Internet to obtain context-sensitive help from this site. The app is adapted to phone & tablet devices both.

The new version of the app with all support languages and features for Android 5.0 and higher is available on Google Play. To download tap on the image below if you see it on a mobile. Click on the image or scan QR code by your mobile if you on a desktop. Do not forget to rate the app and leave feedback.
